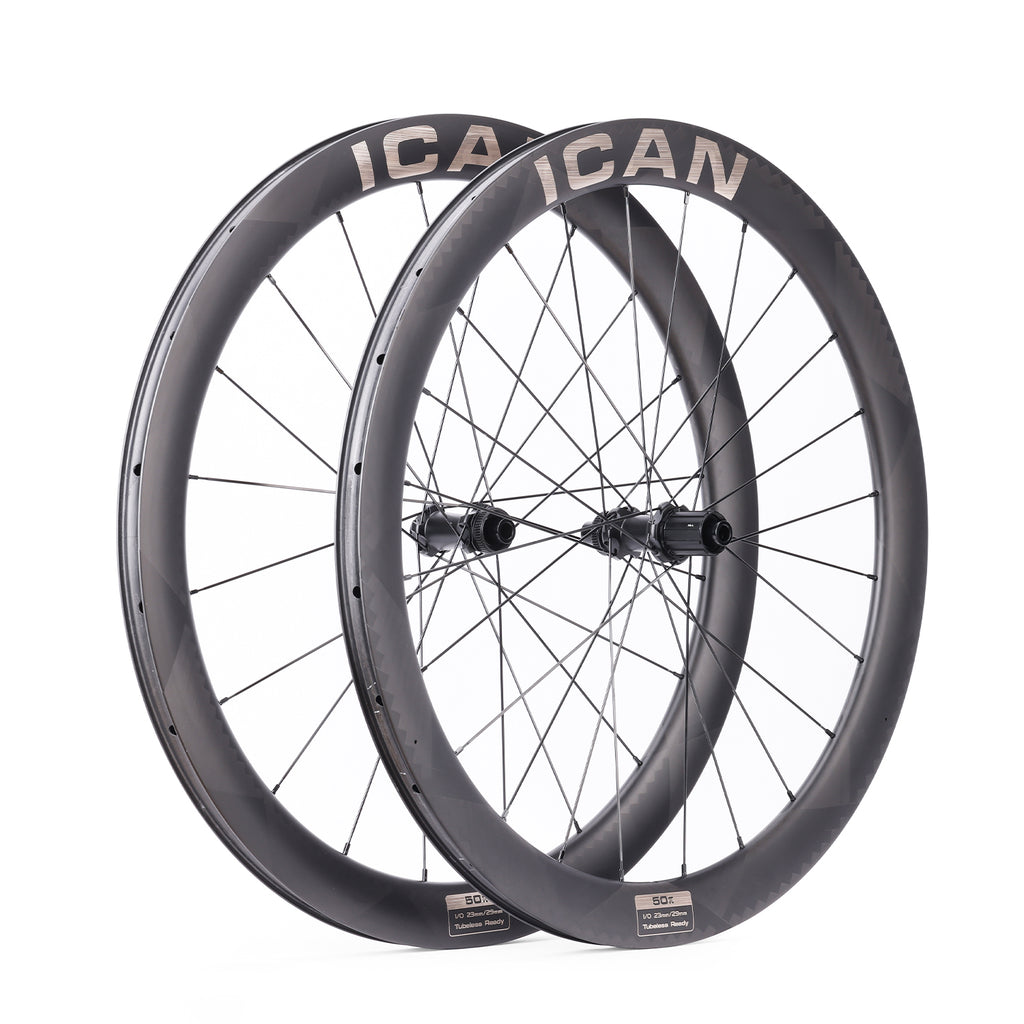

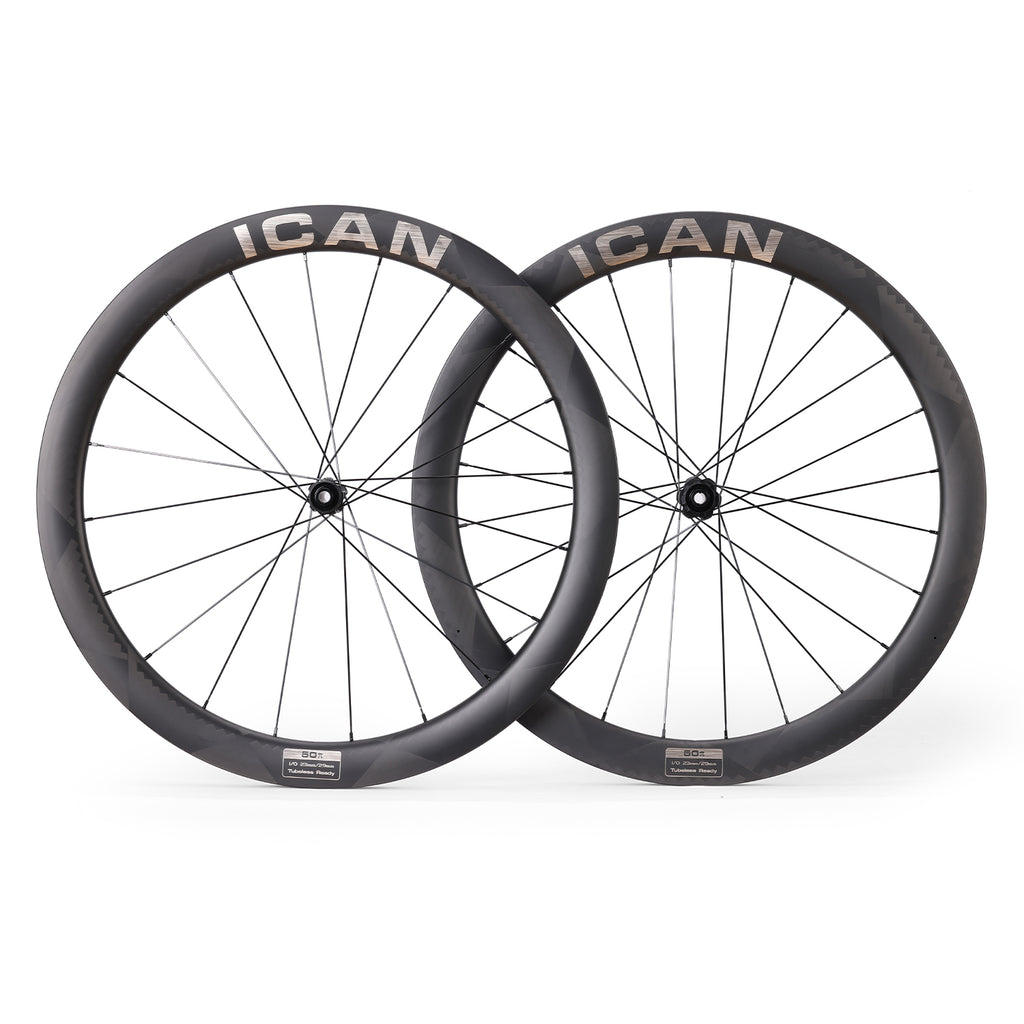

50mm Pie Disc Wheels

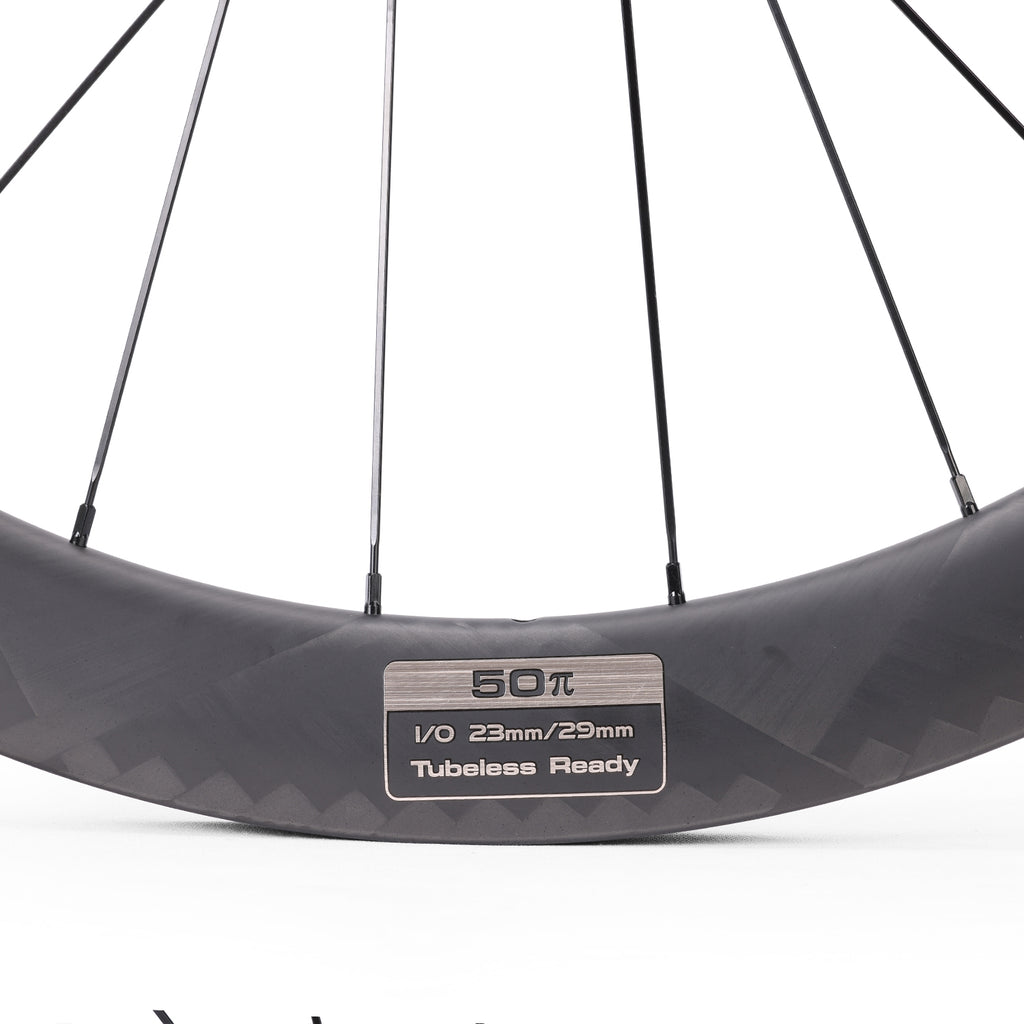

This 50mm rim depth wheelset features a Toray T700 & T800 carbon fiber hybrid weave, with 12K carbon fiber wrapped around the rim to create a three-dimensional diagonal pattern. The rims featu...
This 50mm rim depth wheelset features a Toray T700 & T800 carbon fiber hybrid weave, with 12K carbon fiber wrapped around the rim to create a three-dimensional diagonal pattern. The rims feature a hooked edge design, compatible with clincher and tubeless tires, and a 23mm inner width provides better tire support. It's equipped with D19 hubs, a center-lock disc brake, and S&S stainless steel bearings for smooth and durable performance. The spokes are Pillar SA1423, with a 20-hole front and 24-hole rear lacing, achieving a balance between stiffness, weight, and aerodynamics, making it suitable for both general road use and racing.
Specification
| Type | Carbon Disc Wheelset |
| Rims | Superlight 50mm 12K Filament-wound |
| Material | 100% Carbon Fiber Toray T700 & T800 |
| Size | 700C |

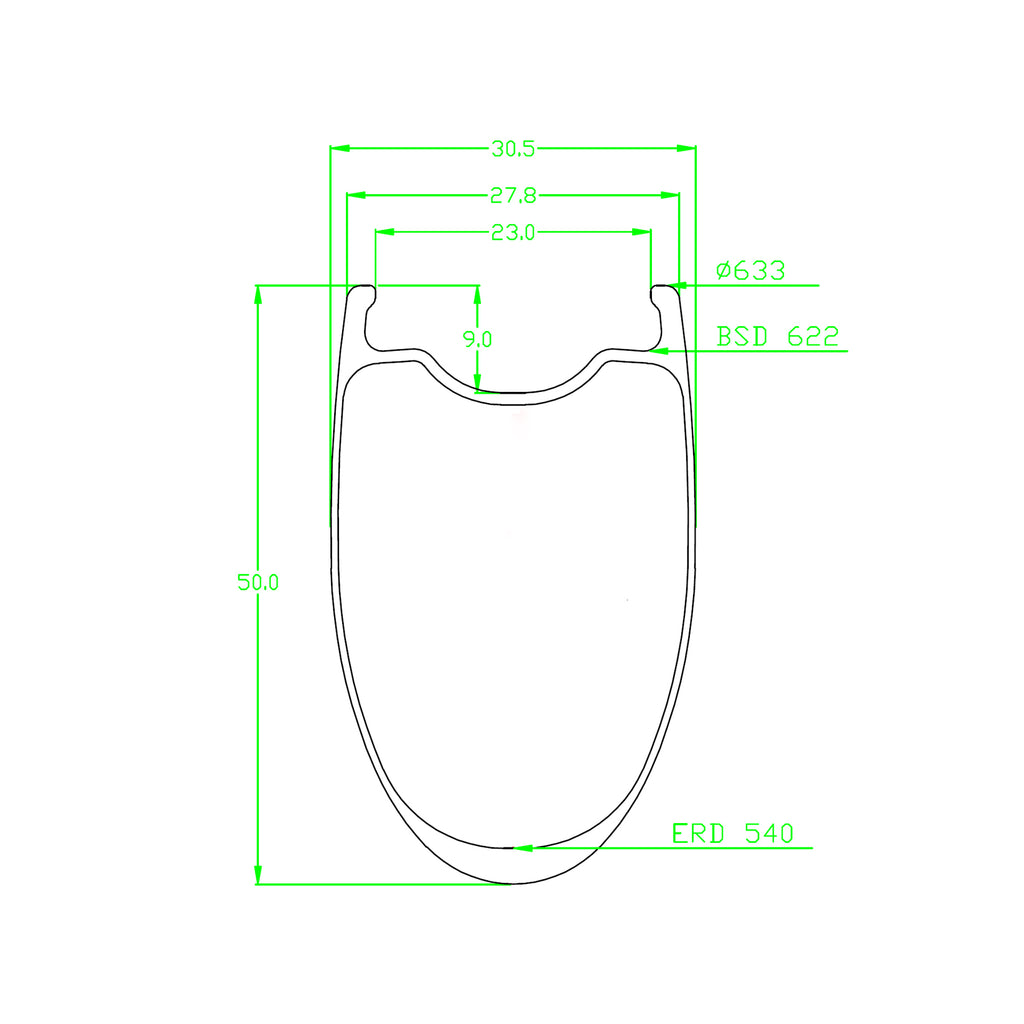

| Rim |
Drills: 20/24 Holes Inner Width: 23mm |
| Depth | 50mm |
| Profile |
Clincher Tubeless Ready |
| Hub |

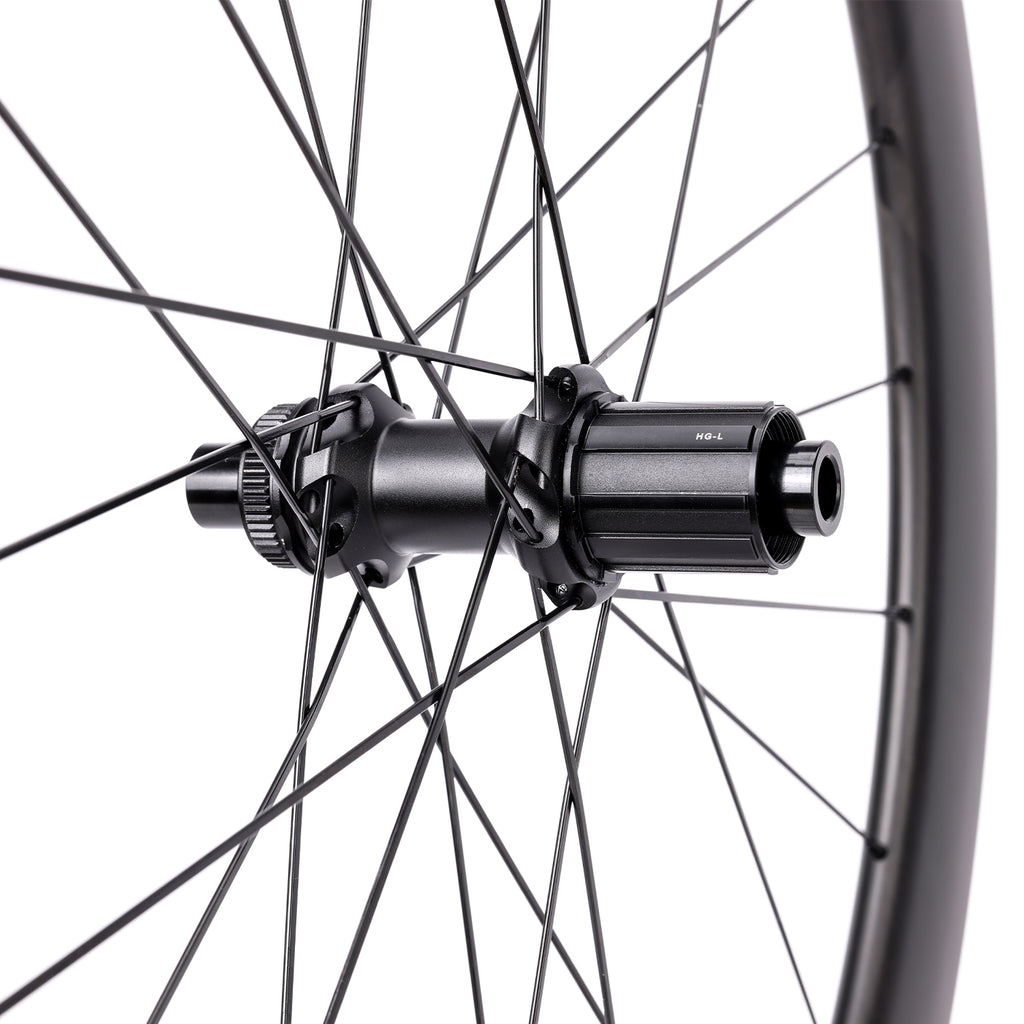

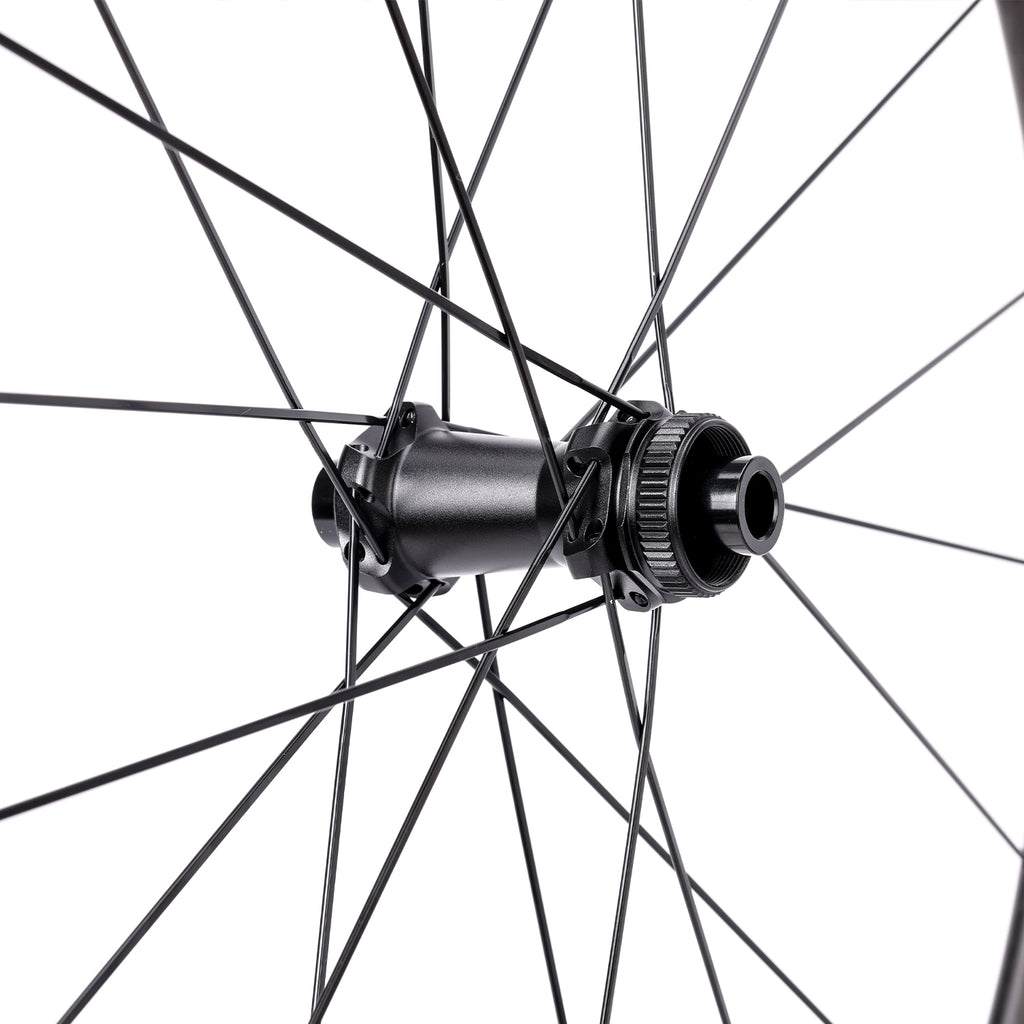

ICAN D19 Hubs with S&S steel bearing Centerlock, Front: 12x100mm Rear:12x142mm |
| Spoke | Pillar SA1423 |
| Spoke Count | Front: 20 Rear: 24 |
| Spoke Pattern |
Front: 2 cross Rear: 2 cross
|
| Nipple | Alloy Color: Black |
| Cassette Compatibility |
Shimano 10/11/12 Speed Sram XDR |
| Wheelset Weight |
Total: 1558+-20g (Centerlock, 12x100/12x142mm) Front: 711+-10g Rear: 847+-10g |
| Braking Surface | No Braking Surface |
| Recommended Tyre Size | 700 x 25-47mm |
| Rider Weight Limit | 110kg |
| Guarantee | 2 years |
| Package Included |
A pair of Wheelset Rim tape Valves |
| Packing Size | 81.5cm x 17cm x 65.5cm |
