Do you live somewhere that is windy? Do you do the odd mountain pass? Despite both of these requirements you would still like a nice set of carbon fiber deep section wheels? Then the Aero 45 Disc might just be the wheelset for you, provided you have a disc braked road bike.
The Aero 45 is the culmination of our years of experience making quality carbon fiber products. It is a layup that took our engineers a while to design and create. It took our Fast and Light rim as a basis, and an entirely new layup was devised to take 100g off per wheelset.
Despite saving you some weight, you’ll find these wheel rims are just as stiff and as strong as the Fast and Light series. They also have the same tubeless ready wide and blunt aero profile. A profile that will perfectly line up with your tires and stop the air from being detached around them. These wheels will save you from some drag.
We laced these wheels using spokes that are as strong and aero as our wheel rim. We used Sapim CX-Ray spokes. These aero spokes are titanium light, but steel strong. The spokes are used to hold a set of ICAN D01 hubs in place.

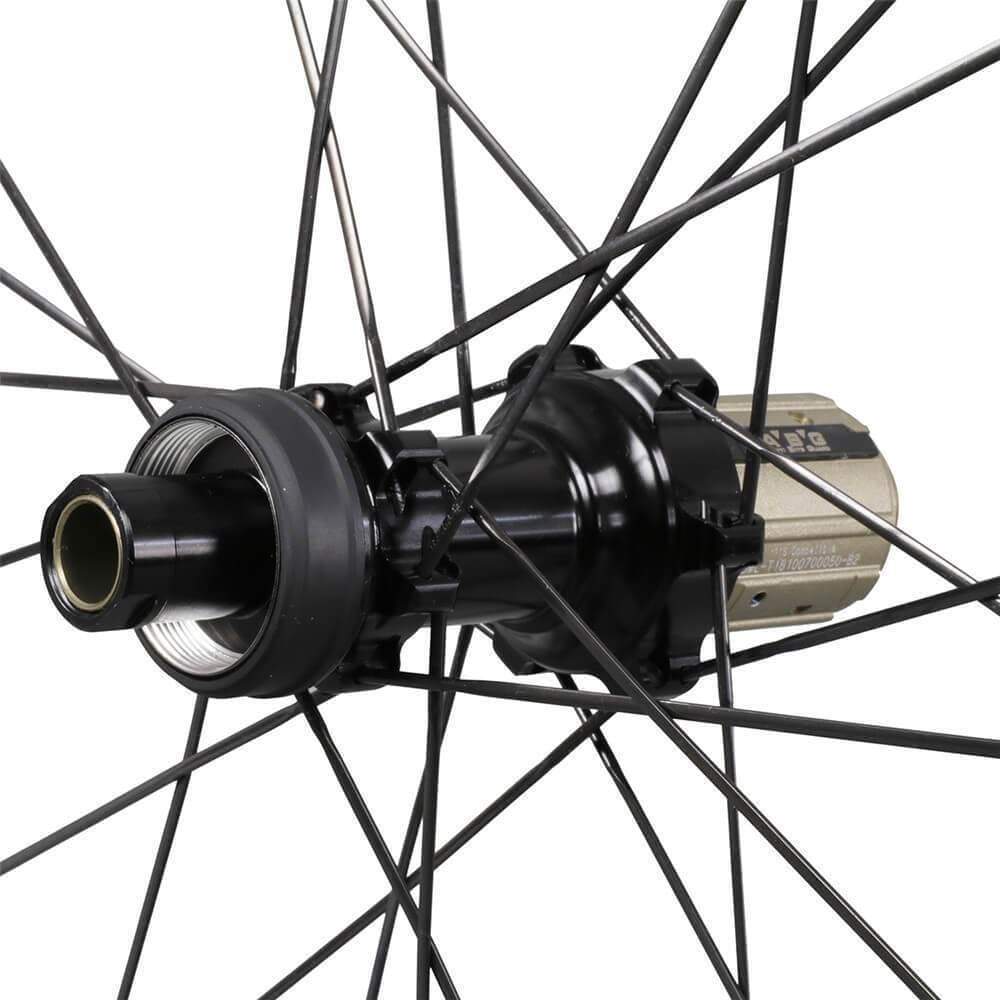

The D01 hubset is a sealed bearing thru axle model. You’ll find a 12 x 100m front, and a 12 x 142mm rear. These hubs run the Centerlock design, so you’ll need Centrelock specific rotors or a 6-bolt adaptor to run your rotors of choice.
Features
Wide Rim Tech
25mm rim wide creates a better, more stable support, while the shape of the tire and rim together creates regular, stable air flow, in short, more aerodynamics, less attrition. provides an ideal basis for 25/28mm tires, the sizes currently popular.
2-Way Clincher Tubeless. Tubes or No-Tubes
Use either traditional tires with tubes, or tubeless tires without tubes. Tubeless tires can provide lower rolling resistance and better protection from punctures.
Sapim CX-RAY As light as a titanium spoke
The CX-Ray still receives the best results in fatigue testing of any spoke. The CX-Ray aero spoke combines excellent aerodynamics with low weight and great strength. Not only are they more aerodynamic, they also make wheels lighter and stronger. Its unique strength and flexibility make the CX-Ray suitable for most bicycle disciplines. CX-Ray spokes are used by top bike racers and triathletes around the world.
Type | Carbon Disc Wheelset |
Material | 100% Carbon Fiber Toray T700 & T800 |
Size | 700C |
Rim |
Drills: 24/24 Holes Internal: 17.5mm |
Depth | 45mm |
Profile |
Clincher Tubeless Ready |
Hub |
ICAN D01 Hubs |
Spoke | Sapim CX-Ray Spokes |
Spoke Count | Front: 24 Rear: 24 |
Spoke Pattern |
Front: 2-cross Rear: 2-cross
|
Nipple | Alloy Color: Black |
Cassette Compatibility | Shimano 10/11speeds |
Wheelset Weight |
Total: 1407+-20g (Centerlock, 12x100/12x142mm) Front: 631+-10g Rear: 776+-10g |
Braking Surface | No Braking Surface |
Recommended Tyre Size | 700 x 25-45mm |
Rider Weight Limit | 105kg |
Guarantee | 2 years |
Free | 1 set of skewer |
Packing Size | 81.5cm x 17cm x 65.5cm |
Recommended Tire Pressure
STANDARD CLINCHER TIRE WITH INNER TUBE | TUBELESS TIRES | |
---|---|---|
≤ 65 KG RIDER | 23mm - 95/100 psi 25mm - 90/95 psi 28mm - 85/90 psi |
23mm - 90/95 psi 25mm - 85/90 psi 28mm - 80/85 psi |
65 - 75 KG RIDER | 23mm - 100/105 psi 25mm - 95/100 psi 28mm - 90/95 psi |
23mm - 90/95 psi 25mm - 85/90 psi 28mm - 85/90 psi |
75 - 85 KG RIDER | 23mm - 101/106 psi 25mm - 96/101 psi 28mm - 91/96 psi |
23mm - 95/98 psi 25mm - 90/95 psi 28mm - 85/90 psi |
85 - 95 KG RIDER | 23mm - 104/109 psi 25mm - 99/104 psi 28mm - 94/100 psi |
23mm - 95/99 psi 25mm - 90/95 psi 28mm - 88/95 psi |
