SN04 120mm

Brand: Triaero

Product Code: FR-SN04-16-Rainbow-TRI

Availability:In stock

$914.00 914.00

Available Options

Qty

Have you been looking at all those fantastic bikepacking stories featuring people riding full suspension fat bikes and travelling the world? You wish to be able to go on one of those adventures but feel you could never afford it? Step forward the ICAN SN04 frame.

This frame is the answer to your dreams. It is just the same as those brand name full suspension fat bike frames but does not have an oversize brand name sticker on the downtube. Without that sticker, you will now be able to enter the luxury world of full suspension fat bikes and have enough change left to go on an adventure.

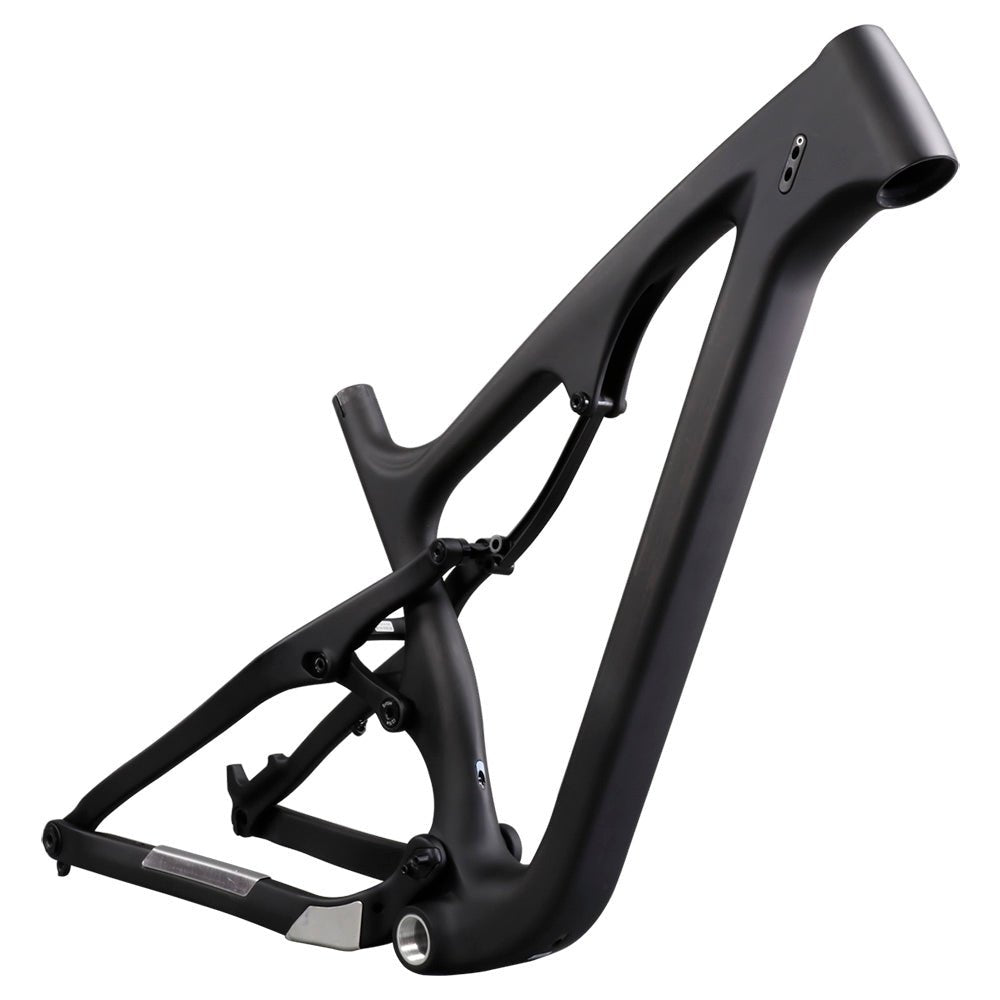

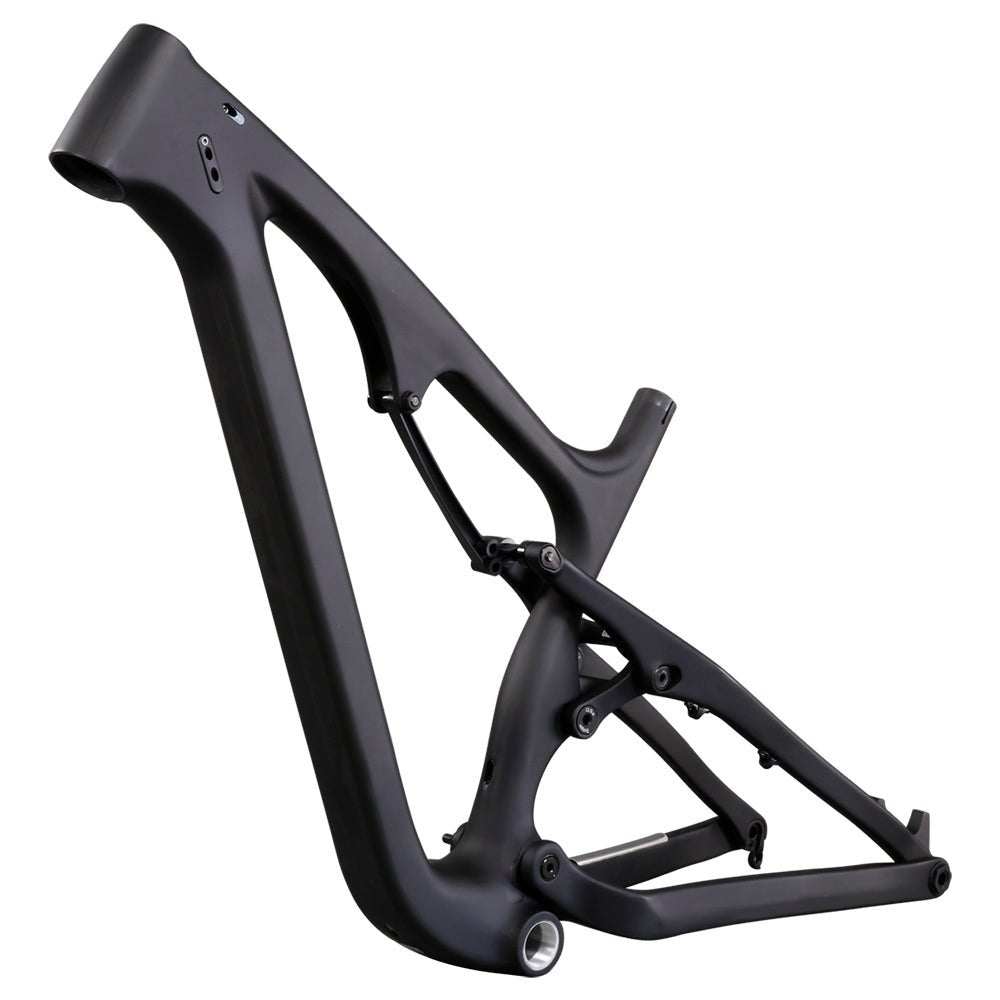

The SN04 frame is constructed from Toray T700 carbon fibre this allowed us to build you a stiff and light frame. The front end has a lovely taper headtube to make it easy to find a fork that fits. We recommend a Rock Shox Bluto at 120mm, and that will work perfectly with a Rock Shox Monarch XX (200 x 51mm) in the back.

With our 197mm symmetrical rear end, you can easily fit 4.8” tyres on a 100mm wide rim at the back. No surface can then not be crossed on this frame. While you are out trying to cross the previously untameable, we have made sure that the SN04 frame is fully internally routed to keep your cables working at their best.

To allow this width of tyres, we have fitted a 120mm BSA bottom bracket, again to keep things reliable. Just above that, we have a removable direct front mount derailleur bracket meaning you can run a 2x drivetrain. If you want to run a 1x drivetrain, remove the bracket, and you have a beautiful clean frame.

If you want this wheelset fast and taxes free(taxes prepaid by ICAN), Then you can go to our overseas warehouse to buy it now.

US warehouse: Carbon Fat Bike Frame SN04


Features

1× & 2×Drivertrains Compatible

This frame is compatible with both 1×and 2× drivertrain setups. A removable

direct mount front derailleur bracket allows for a clean 1× build.

RockShox Bluto Suspension Fork Compatible

120mm travel. Tapered steerer tube. 150×15mm thru-axle hub spacing, 74mm  standard post mount fork.

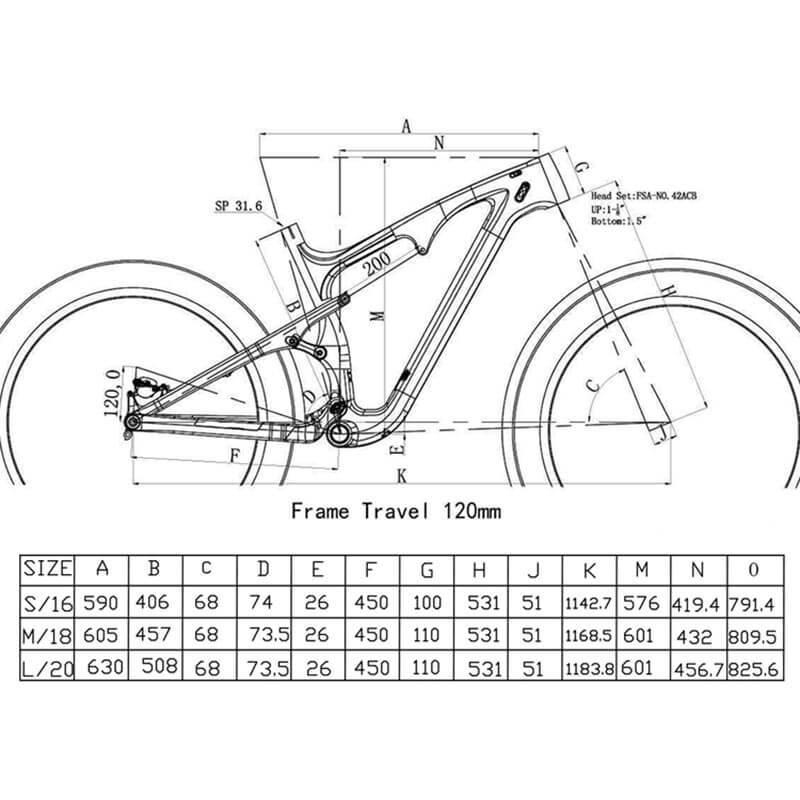

Frame Travel 120mm, Rear Shock 200mm Size

SN04 fat bike frame travel design as 120mm, use 200mm size rear travel, recommend Rockshox Manarch XX.200x51mm.

High-modulus Carbon Fiber Frame

This material offers improved stiffness, better vibration damping, excellent strength and weight savings compared to other materials.

This frame offers a 350g weight savings over the aluminum version.

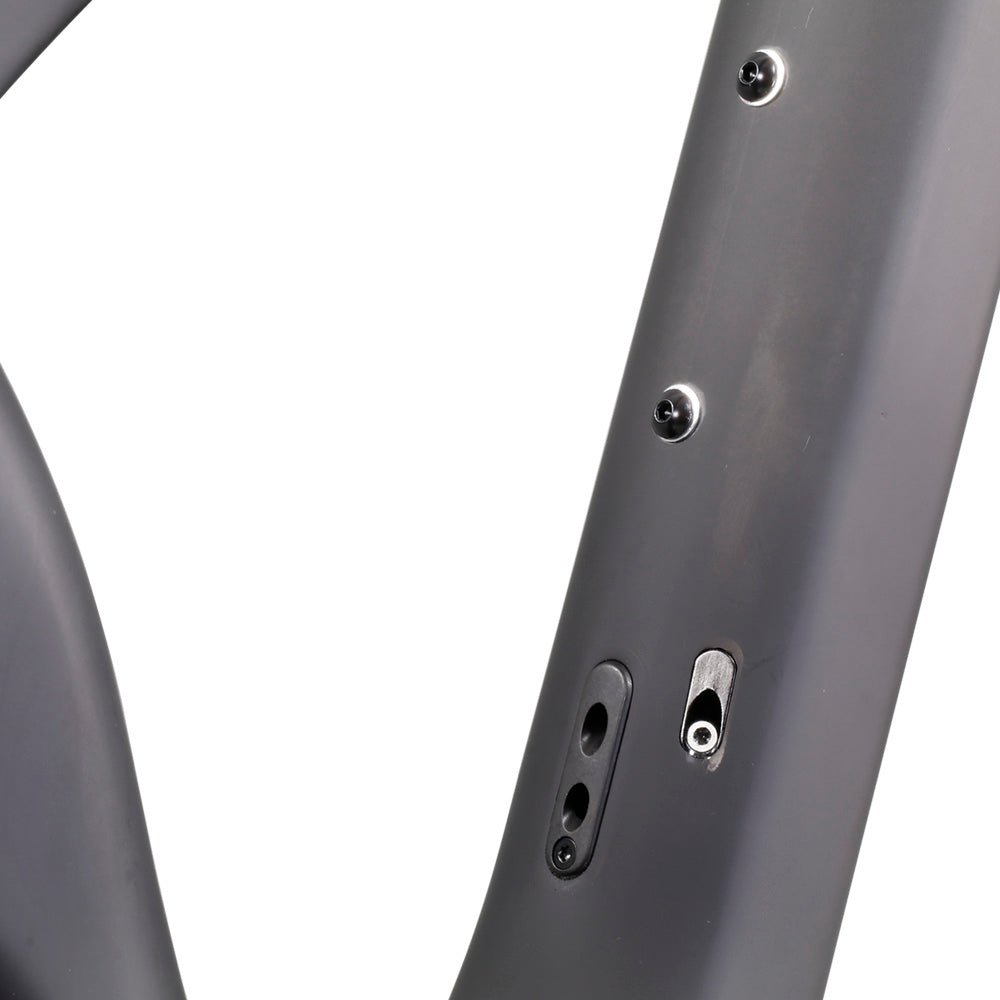

Frame design, hide the brake cable and shift cable inside the frame. This not only provides cables best protection and easy maintenance.

And reduce frame weight, maintaining a high quality and high standards

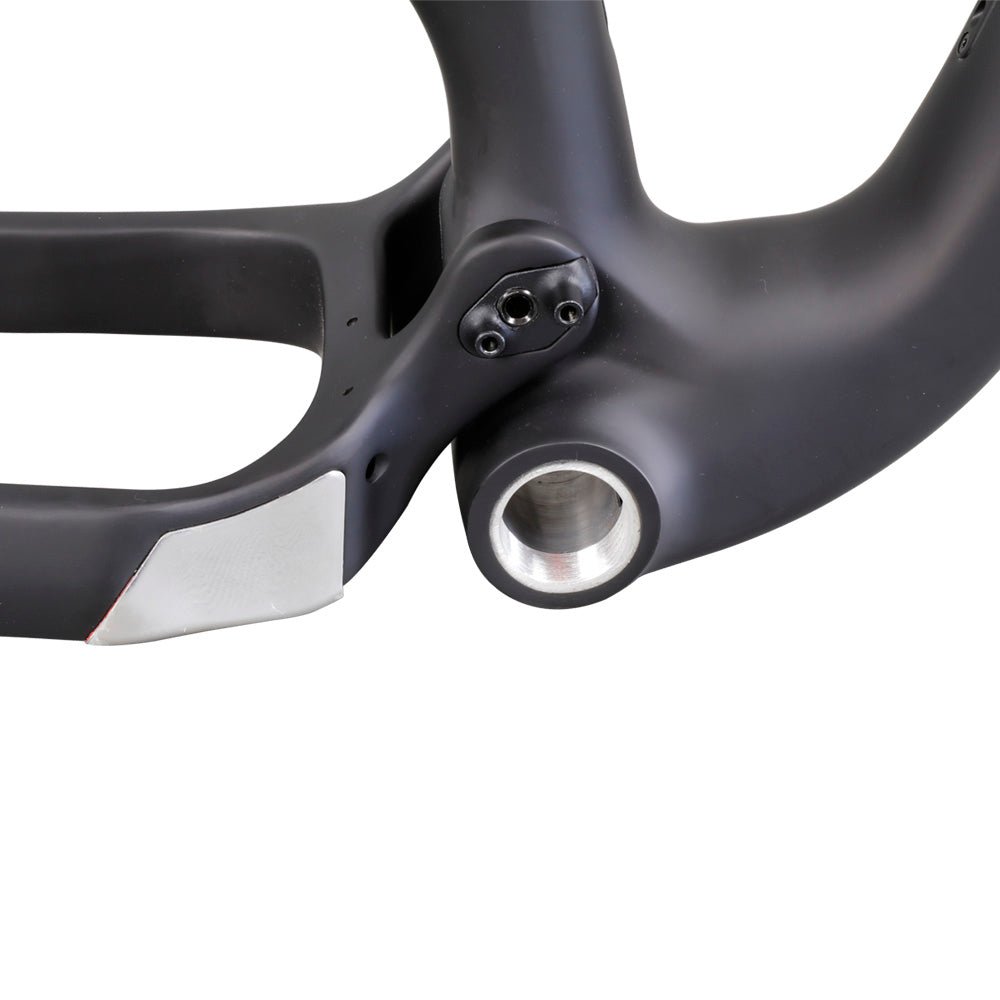

Chainstay Guard

Chainstay Guard let the chain do not touch the frame by accident.

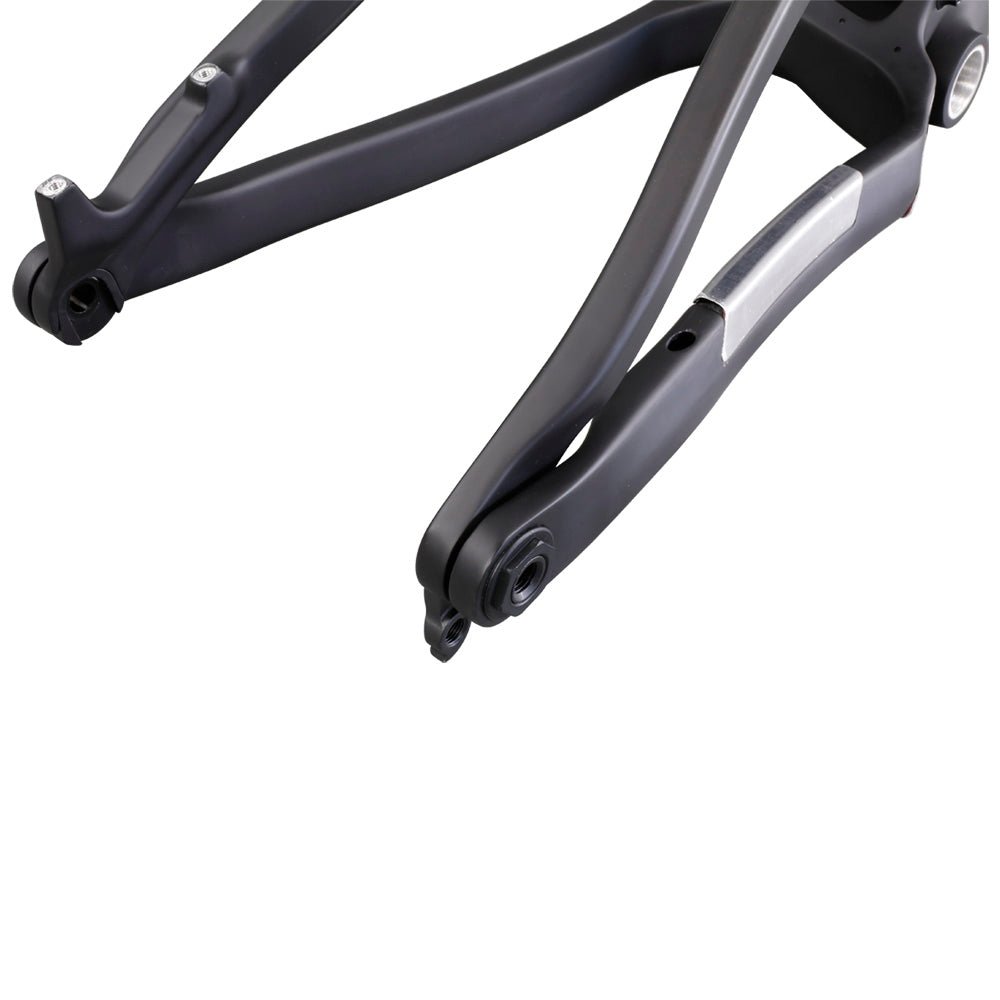

12x197mm Symmetrical Rear Spacing

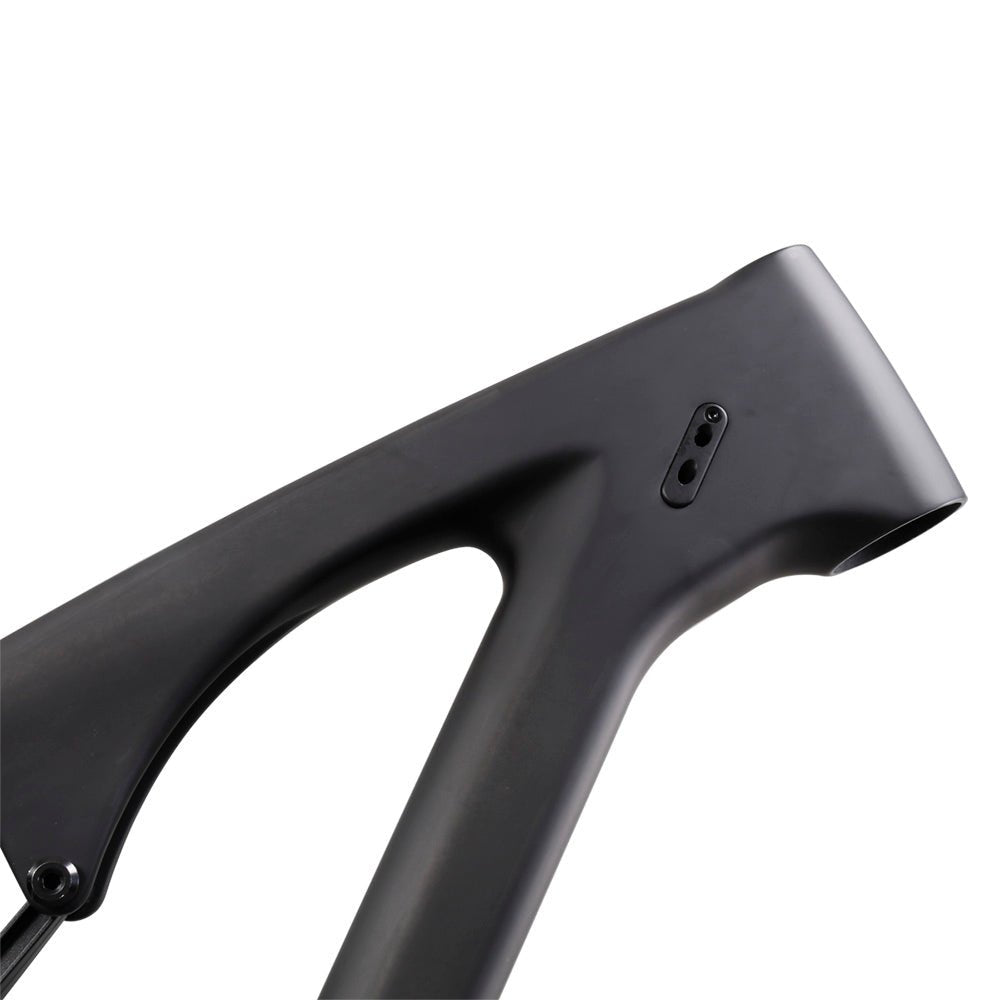

Tapered Headtube

The modern standard for mountain bikes increases front-end frame and fork stiffness without adding significant weight.

Specification

Type Fat bike frame 26er
Material 100% carbon fiber Toray T700
Weave UD Matt/Blue painting UD Glossy
Frame Weight 2560g
Seatpost Size 31.6mm
Seat clamp Size 37mm
Frame Size 16/18/20 inch
Headtube  Top 1-1/8",down 1- 1/2"
BB BSA(120mm BB Shell)
Model SN04
Rear Spacing 197mm
Disc Rotor Size 160mm(front and rear)
Wheel & Tire Options

26×3.8—4.8” on up to a 100mm rim

29×2.25—3” (including 29+)

27.5×3.0—3.25”(27.5+)



Package included

1x frame

1x seatpost Clamp

1x rear thru axle
