XC Bike Frame S3

The Best XC full suspension MTB Boost frame S3  XC Full Suspension MTB Bike S3 is the latest cross country bike frame from ICAN Cycling, which has perfect performance and features. 1. Full suspens...
Matte Black
Size Chart

The Best XC full suspension MTB Boost frame S3

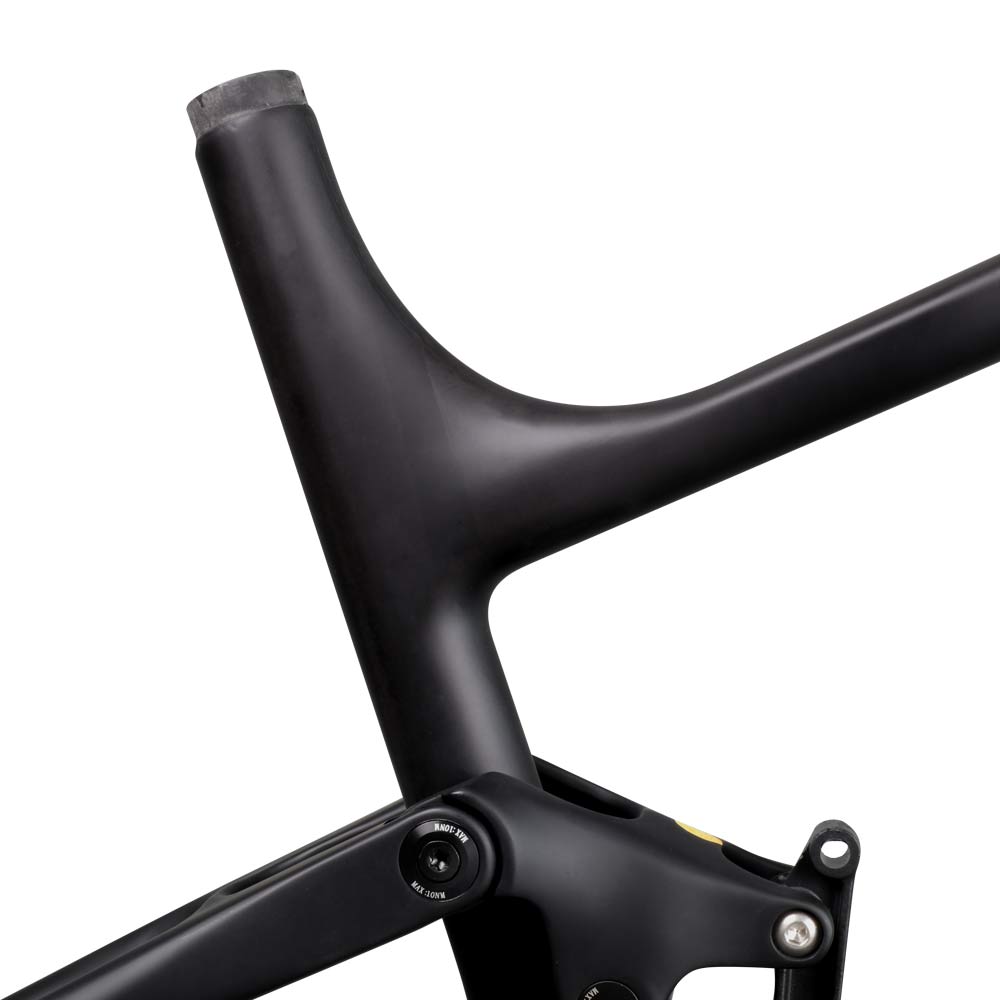

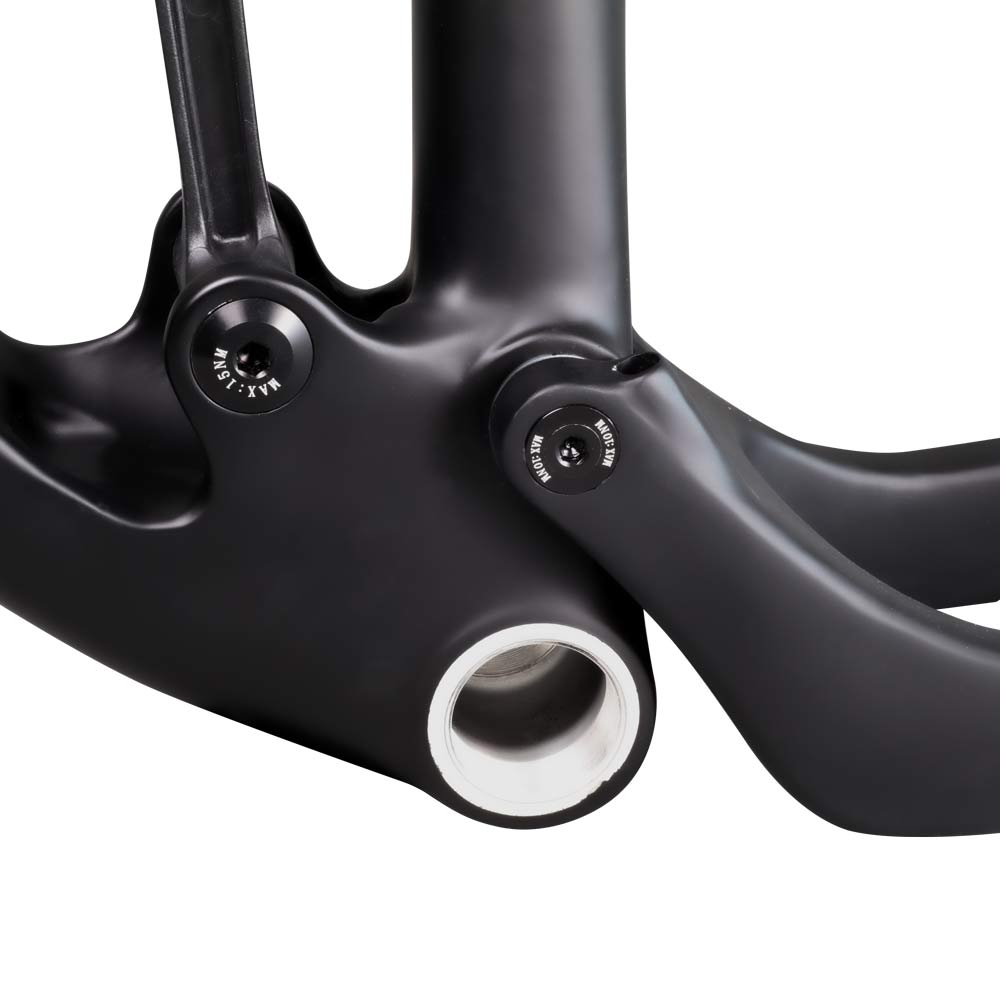

 XC Full Suspension MTB Bike S3 is the latest cross country bike frame from ICAN Cycling, which has perfect performance and features.

1. Full suspension carbon 29er mountain bike frameset, weighing 2280 grams.
2. The compact rear triangle has a shock-absorbing chain.
3. The stroke is 122mm, and the rear shock absorber is 165*40mm
4. Three-point joint damping geometry.
5. Tapered head tube design.

The Features Of  XC Full Suspension MTB Bike S3


100% full toray carbon fiber
Frame Model Cross Country Bike Boost
Weave UD Matt/Painting
Available Size S/M/L/XL
Design Wheel/Tire Size 27.5"*2.8" or 29"*2.35"
Travel 100mm
Rear Rock travel 165(length)*40mm(travel)
Headset-Upper 1-1/8"
Headset-Lower 1-1/2"
Seatpost 31.6mm
Max chainring: 36T
Bottom Bracket BSA
Rear Spacing 148 x 12mm
Bottle Mounts 1 per frame
Disc front and rear 160-180mm
Frame Weight 2280+-20g
maximum insert length of the seatpost 150mm 180mm 230mm 280mm


When we choose a cross-country (XC) mountain bike, stiffness, strength and comfort are the factors we need to consider. Obviously, if you need to ride downhill or all-mountainously, a full suspension XC mountain bike is more suitable for you than a hardtail bike.

The fact is that buying a high-end full suspension xc mountain bike is not cheap. If you are an experienced racer, you can assemble a full suspension xc mountain bike by yourself. I suggest you buy a full suspension carbon fiber mountain bike frame and wheels separately, which It will greatly reduce your cost and be able to feel fun because he will be like your child.

We all know that designing and riding a full-suspension mountain bike frame is not easy, especially for novices who are downhill. Safety is always our top priority, and it is also our basic rule for constructing each framework. This year, we will update the MTB frame to a new level. With the mature technology of Toray T800 + T1000 carbon fiber, we can create a stronger and stronger frame.

This complete suspended MTB frame is not light, weighing 2280 grams, but you will see a lot of safety details on this frame!
